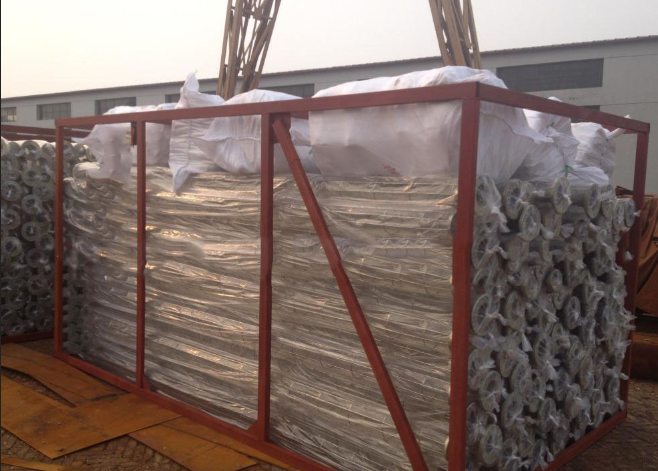

Bag Cage
- Brand: JH
- Type:

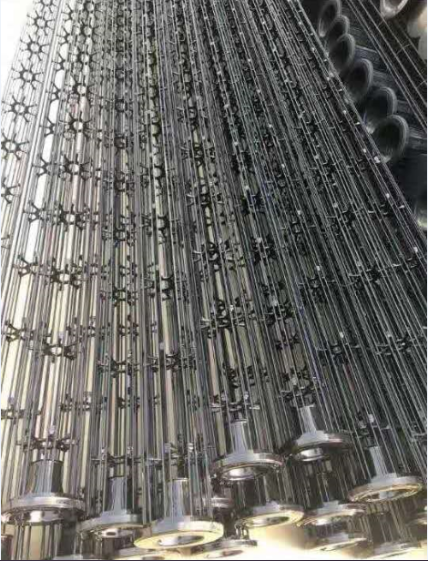

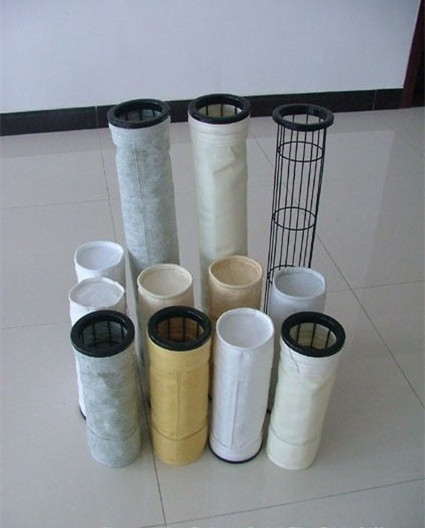

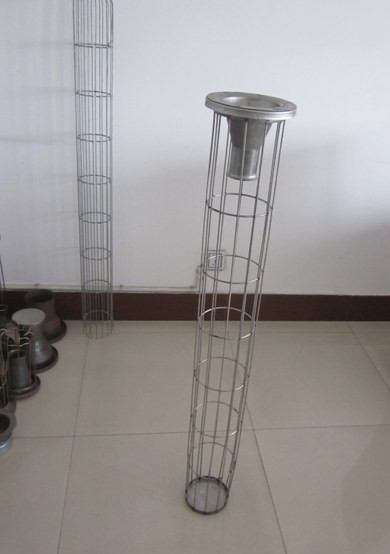

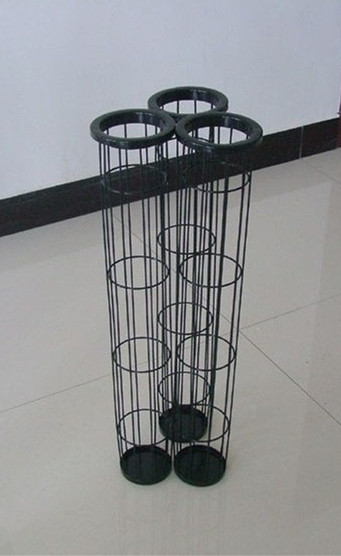

Round bag type(external filter bag)
|
Frame diameter(mm) |
Diameter of matched filter bag(mm) |
Length(mm) |
|
115 |
120 |
2000 2400 2800 |
|
125 |
130 |
|
|
147 |
152 |
|
|
156 |
160 |
|
|
195 |
200 |

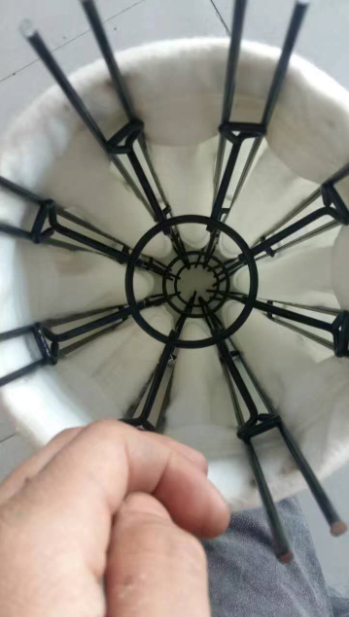

Round bag spring type(external filter bag)
|
Spring diameter(mm) |
Diameter of matched filter bag(mm) |
Length(mm) |
|
115 |
120 |
1500 2000 2400 |

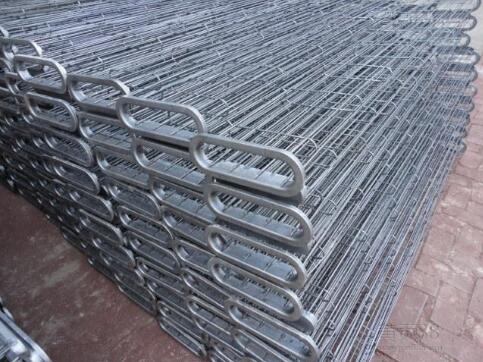

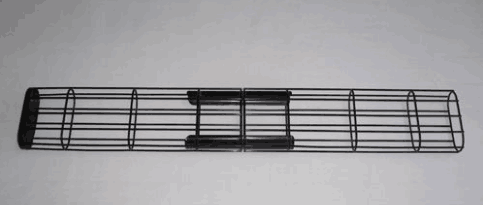

Flat bag type(external filter bag)(oval/rhombus)
|
Frame perimeter(mm) |
Perimeter of matched filter bag(mm) |
Length(mm) |
|
800 |
800 |
2000 3000 4000 |
|
900 |
900 |
Envelope bag type
|
Length, width and thickness of frame(mm) |
Length, width and thickness of matched filter bag(mm) |
|
1500 X 750 X 25 |
1500 X 750 X 25 |
